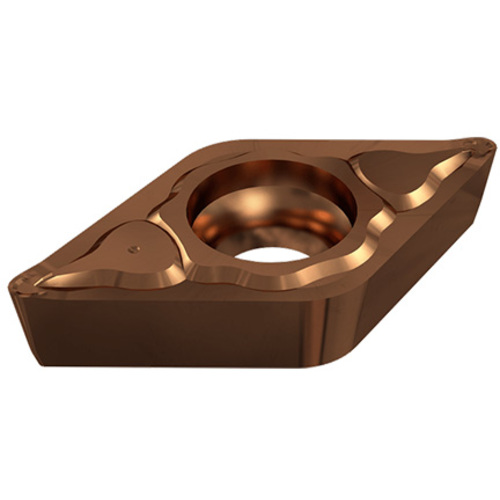

DCMT 2-1-F3H IC1024
| Applicable Material | | Hard Materials | | Grade | IC1024 |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | | Fixing Hole Diameter (D1) | 0.11″ |
| Insert Style | DCMT | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.0158″ | Min D.O.C. | 0.012″ |
| Insert Size | 2-1 | Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.303″ | Min. Turning Feed (ft(min)) | 0.00236 ″/rev |
| Insert Thickness (S) | 0.094″ | Max. Turning Feed (ft(max)) | 0.00709 ″/rev |
| Inscribed Circle Diameter (IC) | 1/4″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiAl+TiAlSiN |
Product Features
| Family Description | Rhombic inserts with a positive flank for semi-finishing and finish turning of hardened steel | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Weight
2.5
