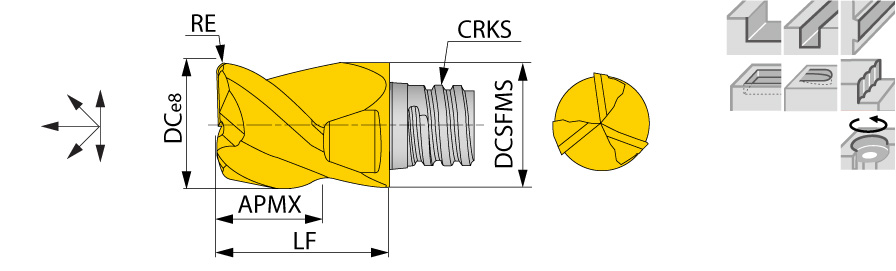

VVFH1000S03R04S06 AH715
End Mill Head; 10 mm Dia. × 7 mm LOC ; 3 FL ; Carbide ; TiAlSiCrN ; AH715
| Application | | Multi Functional tools | Shoulder Milling | | Flute Helix Angle (FHA) | 41 Degrees |
| Cutting Diameter (DC) | 10 mm | Grade | AH715 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlSiCrN |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Corner Radius (RE) | 0.4 mm | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 10 mm | Tool Type | Solid carbide non center cutting endmills 90 |
| Depth of Cut Maximum (APMX) | 7 mm | Body Material | Carbide |
| Functional Length (LF) | 13 mm |
Product Features
| Family Description | 3-flute, for rough to finish machining, Drilling square head capable of drilling | Country of Origin | Japan |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
16.5
