1QP-TCN18R197P-020 BX360

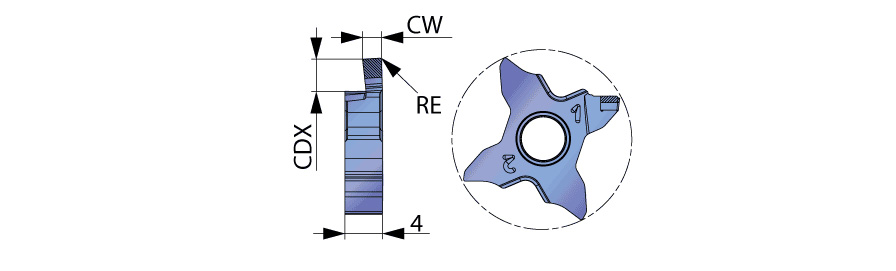

Parting Off Insert; 0.078″ CW × 393.661″ Thickness × 0.0079″ Corner Radius ; Right Hand ; PCBN ; Uncoated ; BX360
| Cutting Width (CW) | 0.078″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0079″ | Applicable Material | | Hard Materials | |
| Insert Thickness (S) | 393.661″ | Chip Breaker Type | TCN18 |
| Cutting Edge Material | PCBN | Tool Type | Turn Negative Inserts |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | BX360 | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | For high precision | Country of Origin | Japan |
| Remarks | Customized groove widths (CW) and/or corner radii (RE) can be produced upon request. |
