| Overall Length (OAL) | 1.134″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 0.787″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 0.478″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DC..3.. | Style | SCLCL08-3A |
| Application | | Ext. 55° Diamond 91° Approach | |
Product Features

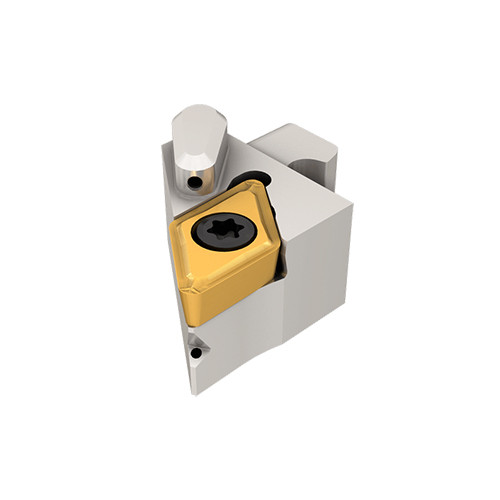

| Family Description | Screw Lock JETCUT Modular Heads Carrying 7° Clearance 55° Rhombic Inserts for Swiss-Type Machines | Country of Origin | Israel |
| Remarks | Use only RH Shank with RH Head and LH Shank with LH Head |
Shipping Info
Package Weight
0.121
