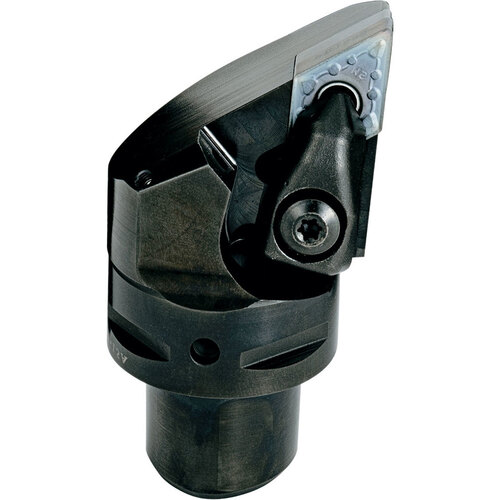

KPC5 DDJNL 3506015A Quick Change, Polygon Shank Indexable Turning Toolholder
| Functional Length (LF) | 60 mm | Application | Copying | External Turning |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Rake Angle Axial (GAMP) | -7 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Minimum Bore Diameter (DMIN) | 110 mm | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Clamping System | Double Clamp |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.775
