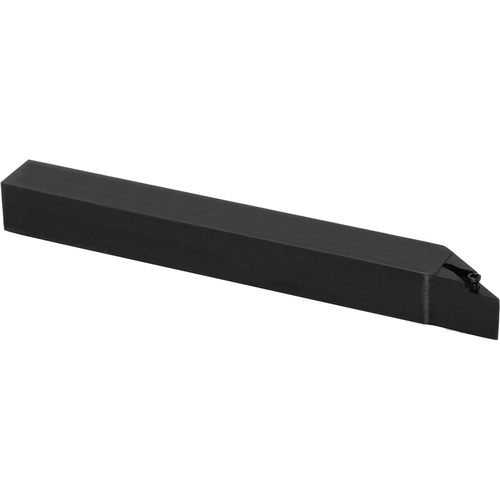

SVJCL 1212JX11FF, Indexable Turning Toolholder

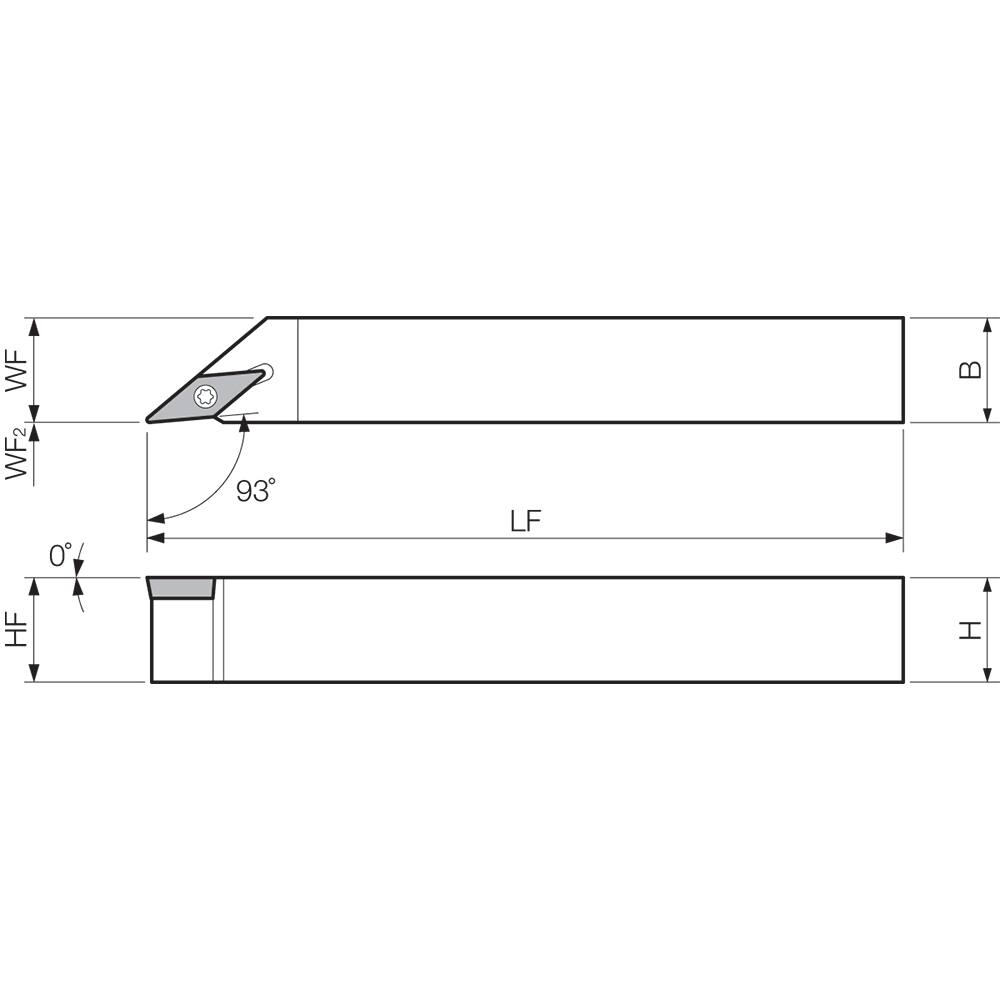

| Shank Height (H) | 12 mm | Application | Copying | External Turning | Small Parts Machining |
| Shank Width (B) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 120 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Clamping System | Screw |
| Coolant Supply Property (CSP) | External | Measurement Type | Metric |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.308
