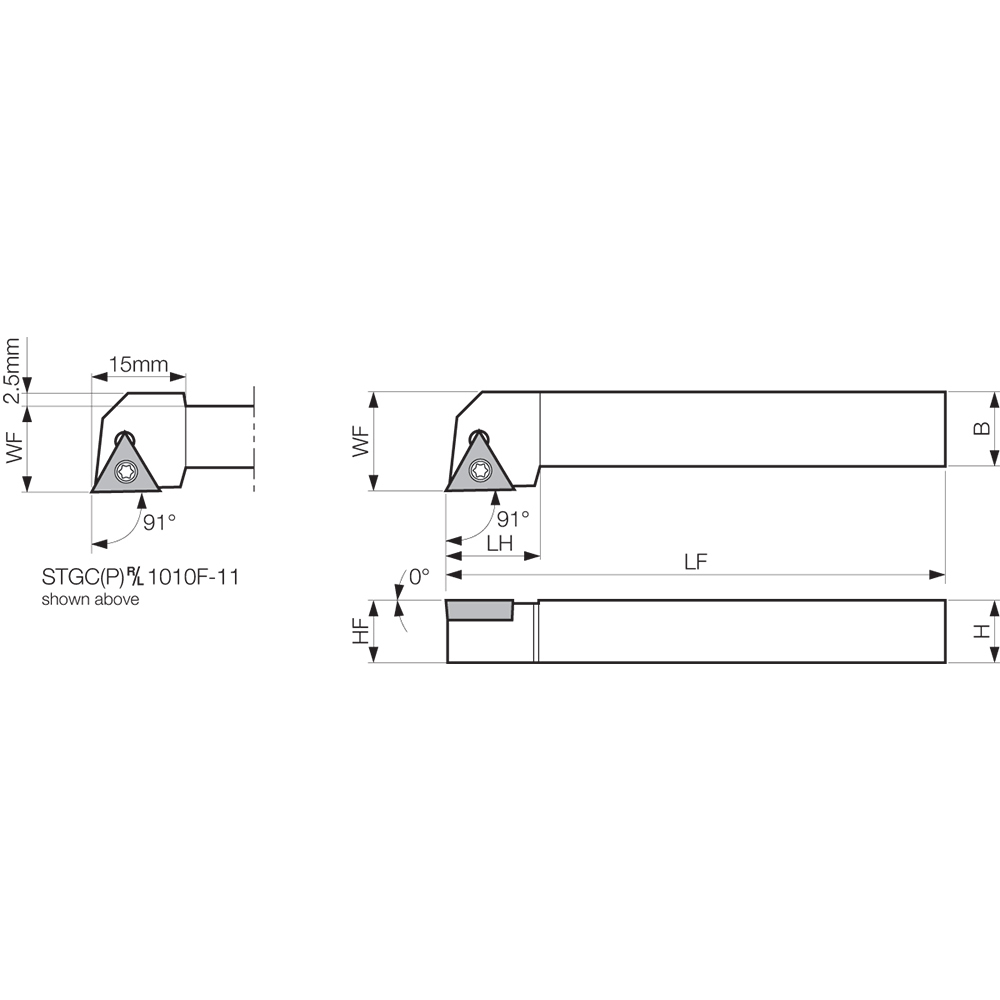

STGPL 1212H11, Indexable Turning Toolholder
| Shank Height (H) | 12 mm | Application | External Turning | Small Parts Machining |
| Shank Width (B) | 12 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 100 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 15 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 6.35 mm | Clamping System | Screw |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.308
