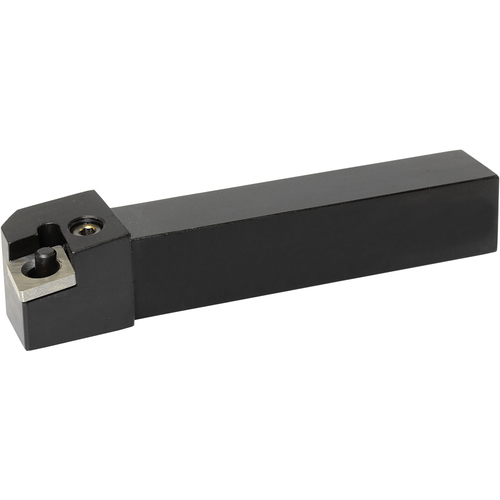

PCLNR 1616H09, Indexable Turning Toolholder
| Shank Height (H) | 16 mm | Application | External Turning | Facing |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 100 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 22 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 9.53 mm | Clamping System | Lever Lock (Pin Lock) |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.557
