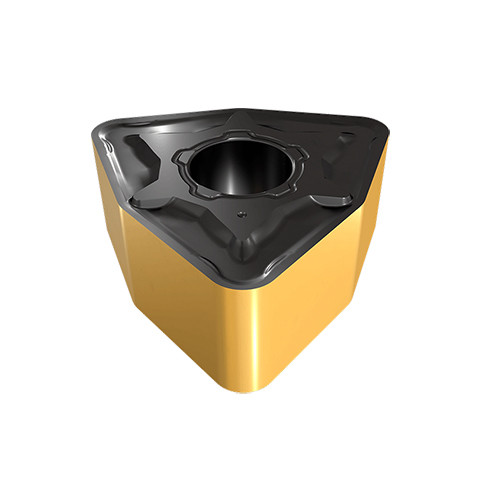

WNMG 431-M3M IC6015
| Applicable Material | | Stainless Steel | | Grade | IC6015 |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | WNMG | Min D.O.C. | 0.02″ |

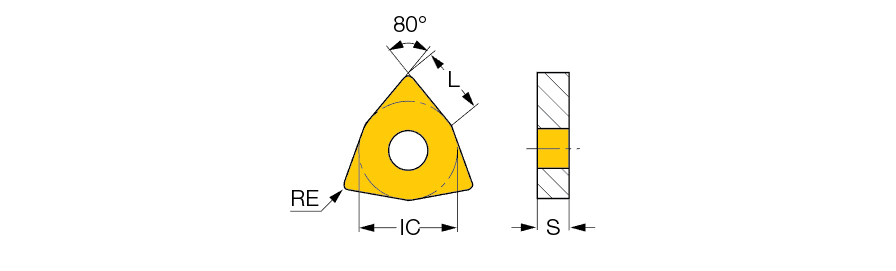

| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.197″ |
| Insert Size | 431 | Min. Turning Feed (ft(min)) | 0.00472 ″/rev |
| Cutting Edge Length (L) | 0.343″ | Max. Turning Feed (ft(max)) | 0.01574 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | M3M |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features
| Family Description | Double-sided trigon inserts, first choice for machining stainless and low carbon steel. Positive rake angle, low cutting forces, providing very reliable performance and excellent tool life. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
