SCD 023-013-030 ACP5N IC908

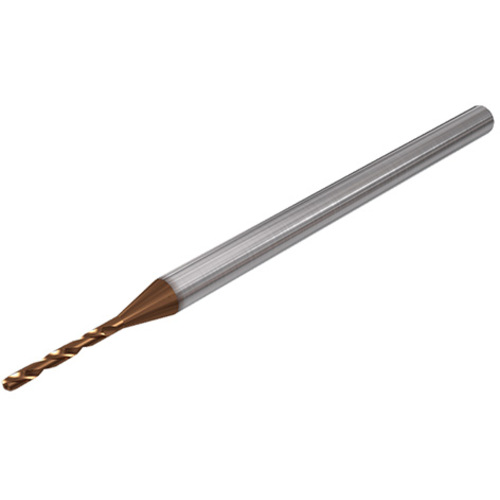

SC Drill; 2.3 mm Dia. × 3 mm Shank Dia. × 48 mm OAL × 17 mm LCF ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 2.3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.0906″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.3 mm | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 13.55 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 17 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Overall Length (OAL) | 48 mm |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.419 mm | Body Material | Carbide |
| Number of Teeth | 2 |
Product Features
| Family Description | Solid carbide drills with coolant holes, drilling depth 5xD | Country of Origin | India |
Shipping Info
Package Weight
8
