SCD 027-008-030 ACP3N IC908

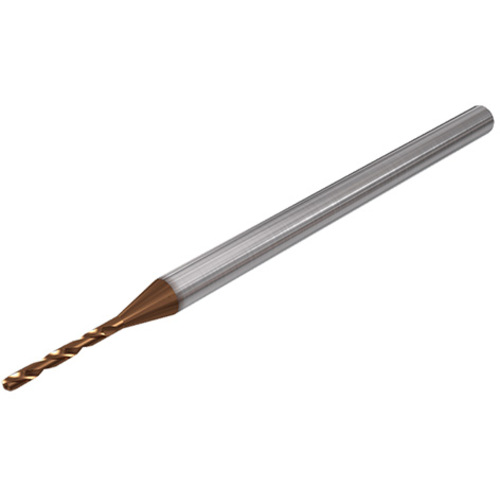

SC Drill; 2.7 mm Dia. × 3 mm Shank Dia. × 38 mm OAL × 12.6 mm LCF ; TiAlN
| Drill Bit Size / Cutting Diameter (DC) | 2.7 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.1063″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 2.7 mm | Grade | IC908 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Usable Length (LU) | 8.55 mm |
| Application | | Drilling | | Length Chip Flute (LCF) | 12.6 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Overall Length (OAL) | 38 mm |
| Coolant Supply Property (CSP) | External | Cutting Direction (HAND) | Right Hand |
| Point Length (PL) | 0.491 mm | Body Material | Carbide |
| Number of Teeth | 2 |
Product Features
| Family Description | Solid carbide drills with coolant holes, drilling depth 3xD | Country of Origin | India |
Shipping Info
Package Weight
8
