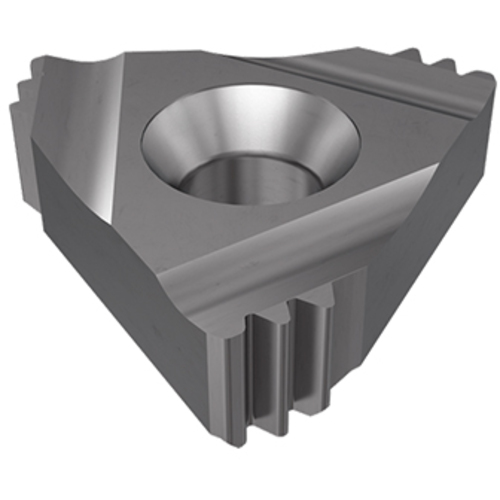

22IR 16 UN 3M-Q IC908
Laydown Threading Insert ; 16 TPI ; 0.866″ Length ; 1/2″ IC ; THFT | ; Carbide ; IC908 ; TiAlN

| Thread Standard | THFT | | Application | | Internal Threading lay down | |
| Inscribed Circle Diameter (IC) | 1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.866″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 16 | Tool Type | Threading Regular Inserts |
| Corner Radius (RE) | 0.0051″ | Measurement Type | Inch |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
| Cutting Edge Material | Carbide | Profile Distance EY (PDY) | 0.0945″ |
Product Features
| Family Description | Internal American UN Full Profile (UN, UNC, UNF, UNEF) Laydown Threading Inserts for General Applications | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info Tolerance: class 2B,ANSI B1, 3M-1986 |
Shipping Info
Package Weight
0
