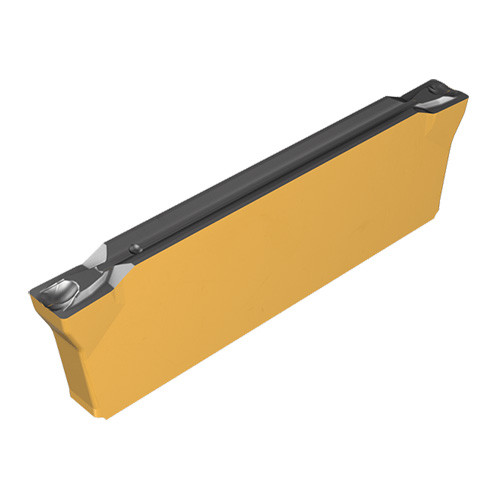

DGN 3002B IC1010

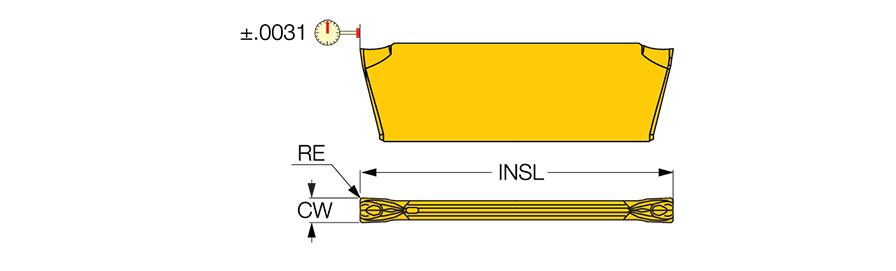

Parting Off Insert; 0.118″ CW × 0.787″ Length × 0.0079″ Corner Radius ; Carbide ; TiAlN, TiN ; IC1010
| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | |
| Corner Radius (RE) | 0.0079″ | Max. Grooving Feed (fg(max)) | 0.0059 ″/rev |
| Insert Length (INSL) | 0.787″ | Min. Grooving Feed (fg(min)) | 0.002 ″/rev |
| Cutting Depth Maximum (CDX) | 0.709″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN, TiN | Body Material | Carbide |
| Grade | IC1010 | Cutting Width Tolerance (+/-) (CWTOL) | 0.00157″ |
| Application | | Ext. Grooving | Parting | | Insert Width (W1) | 0.094″ |
Product Features
| Family Description | Recommended for soft & ductile materials such as 100Cr6 (specifically for the bearing industry), intended for low to medium feeds. | Country of Origin | Israel |
Shipping Info
Package Weight
5.3
