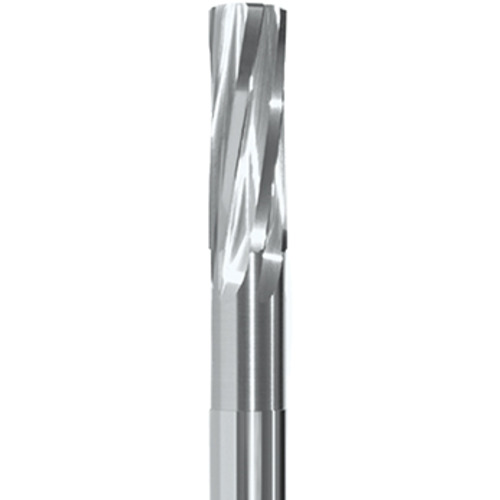

13/64 SPR FL RHC REAMER
Chucking Reamer; 13/64″ Dia. × 13/46″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; Uncoated ; Series 550
| Cutting Diameter (DC) | 13/64″ | Coating | Uncoated |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Cutting Edge Material | Carbide |
| Usable Length (LU) | 1″ | Measurement Type | Inch |
| Cutting Edge Length (L) | 1″ | Series/List # | 550 |
| Connection Diameter Machine Side (DCONMS) | 13/46″ | Decimal Equivalent | 0.2031″ |
| Flute Count (NOF) | 4 | End Shape | 45° Chamfered End |
| Overall Length (OAL) | 3″ | Cutting Diameter Tolerance | +0.0002 / -0.0000 |
| Cutting Direction (HAND) | Right Hand | Single / Double End | Single End |
| Flute Helix Angle (FHA) | 10 Degrees | Length Group | Regular |
| Grade | C-2 Sub-Micron |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.010
