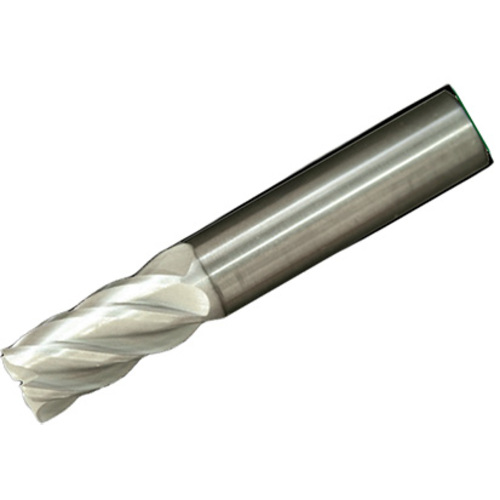

5SH625-1.25-L3.5-C000 ASH725
SQ End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 0″ RE ; 5 FL ; Carbide
| Cutting Diameter (DC) | 5/8″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Corner Radius (RE) | 0″ |
| Overall Length (OAL) | 3-1/2″ | Grade | ASH725 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.625″ |
| Shank Type | Round | Measurement Type | Inch |
Product Features
| Family Description | 5 Flute design.37deg Helix Angle.Variable Index / Variable helix.Eccentric Relief.Sharp or Radius Corners. | Country of Origin | USA |
| Remarks | These products are for the North American Region only. |
