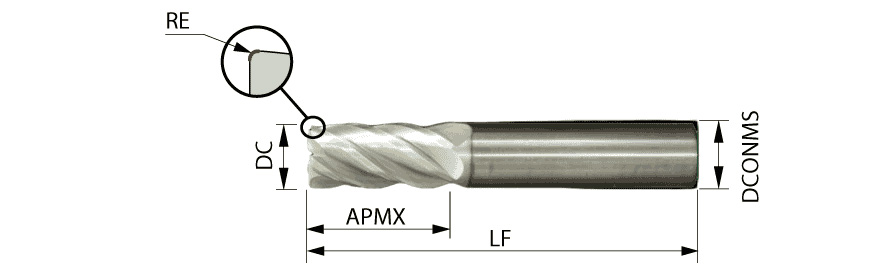

5SH500-1.75-L4.0-C150 ASH725
SQ End Mill; 1/2″ Dia. × 1-3/4″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 0.03″ RE ; 5 FL ; Carbide
| Cutting Diameter (DC) | 1/2″ | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Corner Radius (RE) | 0.03″ |
| Overall Length (OAL) | 4″ | Grade | ASH725 |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
Product Features
| Family Description | 5 Flute design.37deg Helix Angle.Variable Index / Variable helix.Eccentric Relief.Sharp or Radius Corners. | Country of Origin | USA |
| Remarks | These products are for the North American Region only. |
