| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | IC882 |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Maximum Feed per Tooth (fz(max)) | 0.0354 ″/tooth |
| Insert Length (INSL) | 0.22″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0394″ | Minimum Feed per Tooth (fz(min)) | 0.0079 ″/tooth |
| Insert Thickness (S) | 0.079″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiAlSiN+TiSiN | Body Material | Carbide |
Product Features

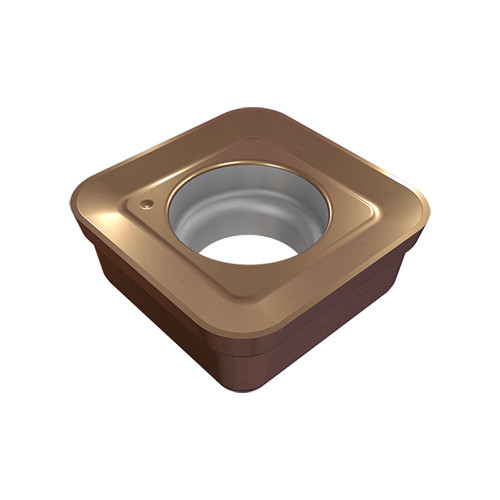

| Family Description | Single-sided square inserts with 4 cutting edges for fast feed milling | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is .004 inch/t T type for steel, ferritic and martensitic stainless steel and cast iron HP type for austenitic stainless steel and high temperature alloys SOMW- flat insert for hard material (up to 60 HRC) and uneven surfaces For cutting conditions click on More info |
