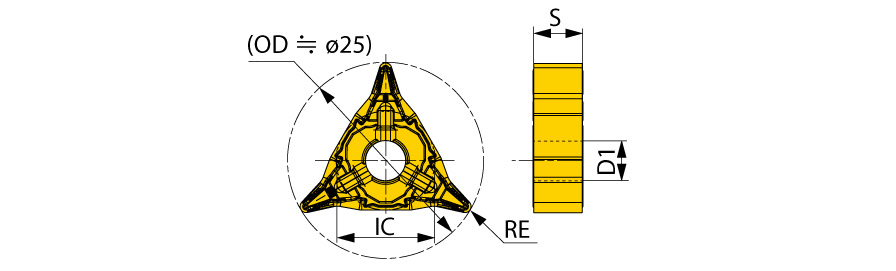

| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Fixing Hole Diameter (D1) | 0.203″ |
| Application | | Inserts | | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.0157″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 393.661″ | Chip Breaker Type | AMT6V-TLF |
| Insert Thickness (S) | 1/4″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Ti-compound+Al2O3+TiN | Cutting Edge Effective Length (LE) | 0.311″ |
| Grade | T9225 |
Product Features
| Family Description | Negative relief ang., M class, 35 deg corner angle insert for AddMultiTurn, for finishing | Country of Origin | Japan |
| Remarks | Please note, when machining with pull face turning method, that 6V TOMG2506... insert may interfere with the workpiece whose external diameter is 70 mm or smaller. *Products are made by license; PrimeTurning is a proprietary technology of AB Sandvik Coromant. |
