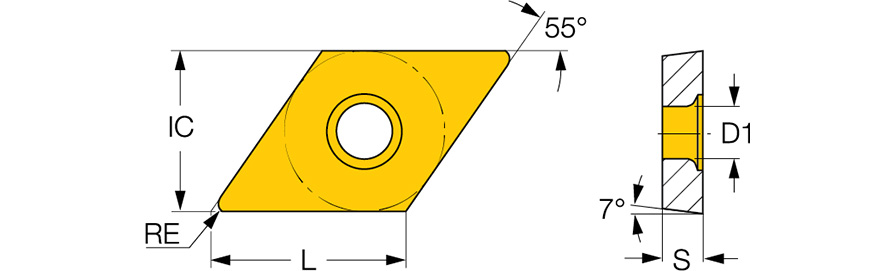

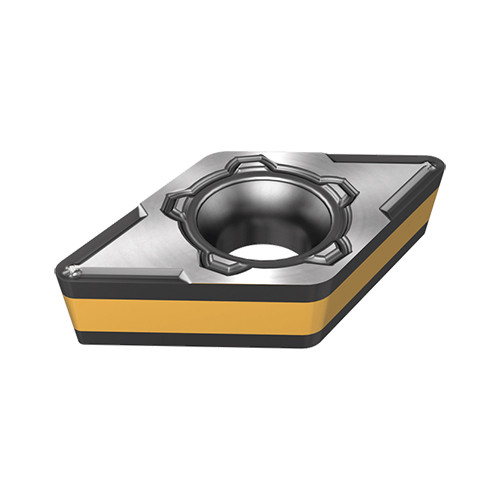

DCMT 3-3-M3P IC807
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.173″ |
| Application | | Ext. 55° Diamond 107.5° Appr. | Int. 55° Diamond 93 95° Approac | | Tool Type | Turn Positive Inserts |
| Insert Style | DCMT | Min D.O.C. | 0.039″ |
| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.138″ |
| Insert Size | 3-3 | Min. Turning Feed (ft(min)) | 0.00393 ″/rev |
| Cutting Edge Length (L) | 0.457″ | Max. Turning Feed (ft(max)) | 0.01181 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | M3P |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC807 |
Product Features
| Family Description | 55° rhombic positive flank inserts, for medium machining conditions on steel. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
