A24-ATXOL25

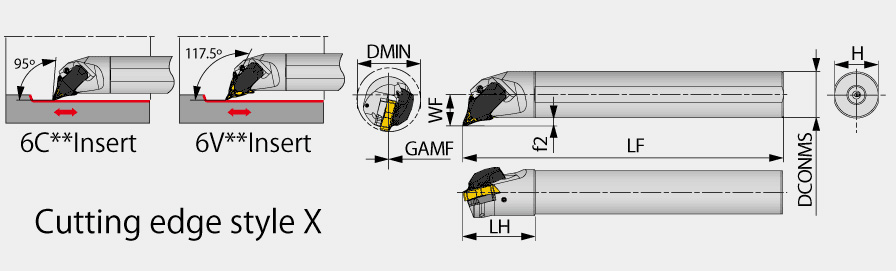

Turning Toolholder; 12″ OAL × 1.469″ Shank Height × 1-1/2″ Shank Dia. × 2.2″ LH ; Left Hand ; Steel
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 12″ | Application | | For Triangular insert | |
| Overall Length (OAL) | 12″ | Rake Angle Axial (GAMP) | -12 Degrees |
| Head Length (LH) | 2.2″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 1.469″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 1.063″ | Body Material | Steel |
| Master Insert Identification (MIID) | 6C/6V-TOMG2506... | Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 2.362″ |
Product Features
| Family Description | Double-clamp boring bar with 95deg and 117.5deg approach angle, for negative 80deg and 35deg triangular inserts. | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. |
