| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0709 ″/tooth |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Cutting Direction (HAND) | Neutral |

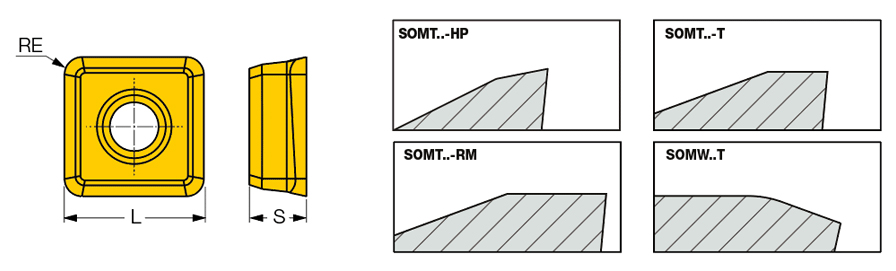

| Insert Length (INSL) | 1/2″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.063″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ | Minimum Feed per Tooth (fz(min)) | 0.0157 ″/tooth |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.205″ | Cutting Edge Effective Length (LE) | 0″ |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN+TiAlSiN+TiSiN | Body Material | Carbide |
| Grade | IC840 |
Product Features

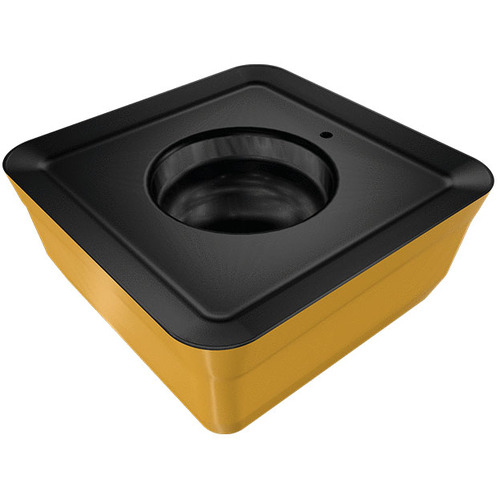

| Family Description | Single-sided square inserts with 4 cutting edges for fast feed milling | Country of Origin | Israel |
| Remarks | For side plunging, the initial cutting feed is .004 inch/t T for steel, ferritic and martensitic stainless steel and cast iron RM-.. for interrupted cut and machining near straight shoulder walls HP for austenitic stainless steel and high temperature alloys HP-P for aluminum (positive rake face) T20 for grey and nodular cast iron TFW for unstable cutting conditions SOMW flat insert for hard material (up to 60 HRC) and uneven surface |
Shipping Info
Package Weight
9.3
