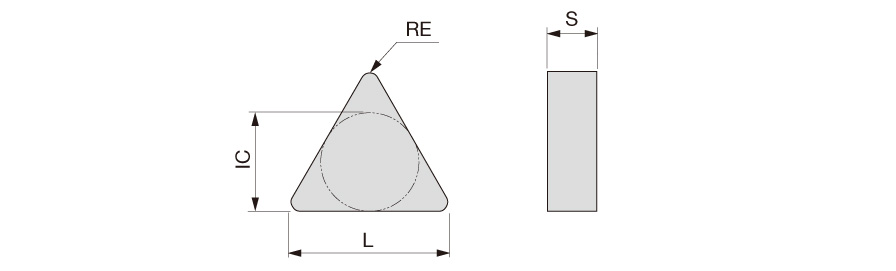

S-TNUN 332HU SBN30
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1575″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | FT-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Grade | SBN30 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Cutting Edge Effective Length (LE) | 0.65″ |
| Min D.O.C. | 0.0031″ |
Product Features
| Family Description | Negative relief ang.Triangular solid CBN grade for h igh speed machining of cast iron. | Country of Origin | Japan |
Shipping Info
Package Weight
0
