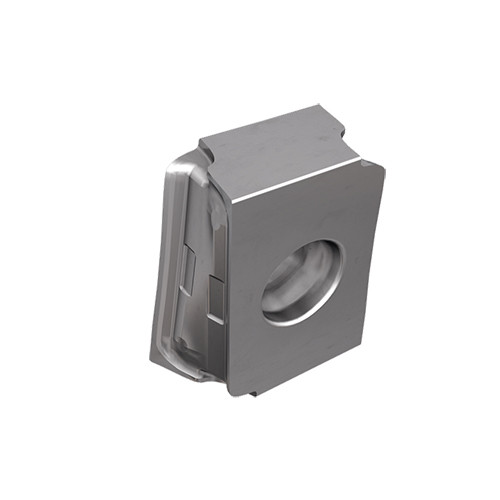

HTP LNMT 1606 ETR IC808
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Application | | Facing | Shouldering | Side Plunging | | Cutting Edge Material | Carbide |

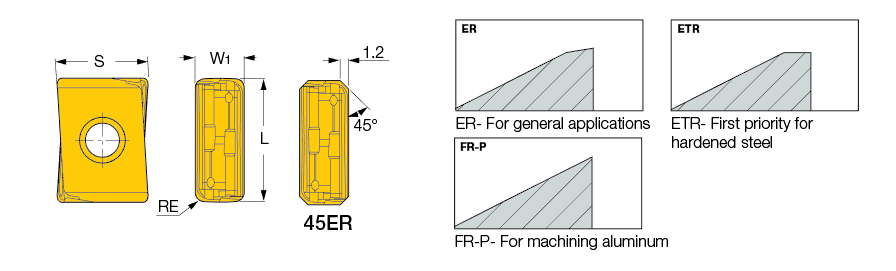

| Insert Length (INSL) | 0.65″ | Tool Type | Mill Tangential Inserts |
| Corner Radius (RE) | 0.0472″ | Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Width (W1) | 0.256″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.474″ | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 |
Product Features
| Family Description | Tangentially clamped insert with 4 cutting edges used on plungers. The insert orientation on the tool results in excellent flatness | Country of Origin | Israel |
| Remarks | FR-P-For machining aluminum, ER- For general applications, ETR- First priority for hardened steel |
Shipping Info
Package Weight
14.7
