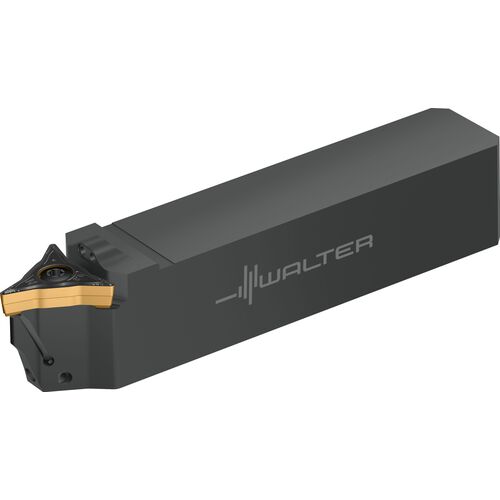

W1010-2020N-WL25-P
Turning Toolholder; 115 mm OAL × 20 mm Shank Height × 20 mm Shank Width ; Neutral ; Steel
Additional Tariff Surcharge of 8 %
| Shank Height (H) | 20 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Width (B) | 20 mm | Usable Length (LU) | 115 mm |
| Protruding Length (LPR) | 115 mm | Weight of Item (WT) | 0.635 lb |
| Overall Length (OAL) | 115 mm | Body Material | Steel |
| Functional Length (LF) | 115 mm | Clamping System | Screw Clamp |
| Functional Width (WF) | 10 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Shank Size (SS) | 20 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | 20 mm × 20 mm |
| Shank Type | Square |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.617
