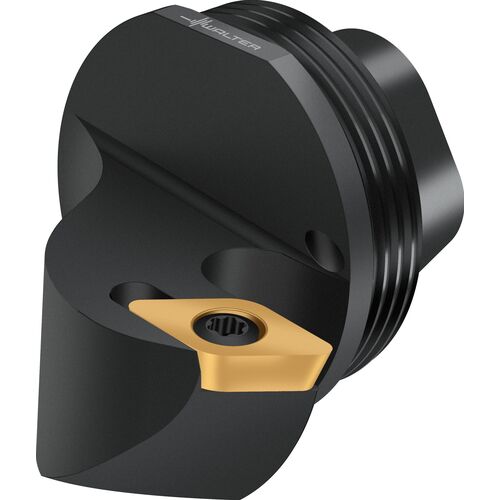

Q25-SDUCR-17012-11X
Turning Toolholder; 24.5 mm OAL × 25 mm Shank Dia. ; Right Hand ; Steel
Additional Tariff Surcharge of 8 %
| Protruding Length (LPR) | 24.5 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Overall Length (OAL) | 24.5 mm | Usable Length (LU) | 12 mm |
| Functional Length (LF) | 12 mm | Weight of Item (WT) | 0.22 lb |
| Functional Width (WF) | 17 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 9.525 mm | Tool Type | Turning Tool Holder |
| Minimum Bore Diameter (DMIN) | 32 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Shank Size (SS) | 25 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | Q25 |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.22
