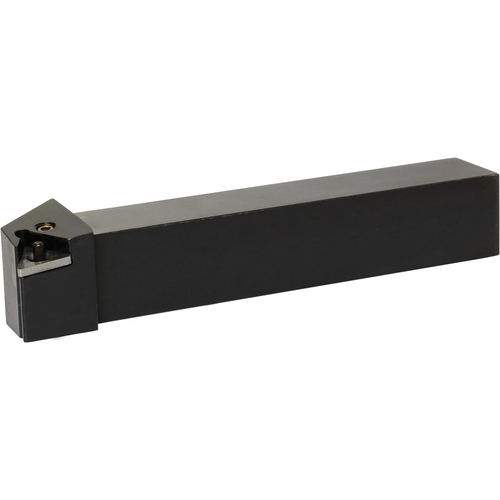

PTGNR 123B, Indexable Turning Toolholder

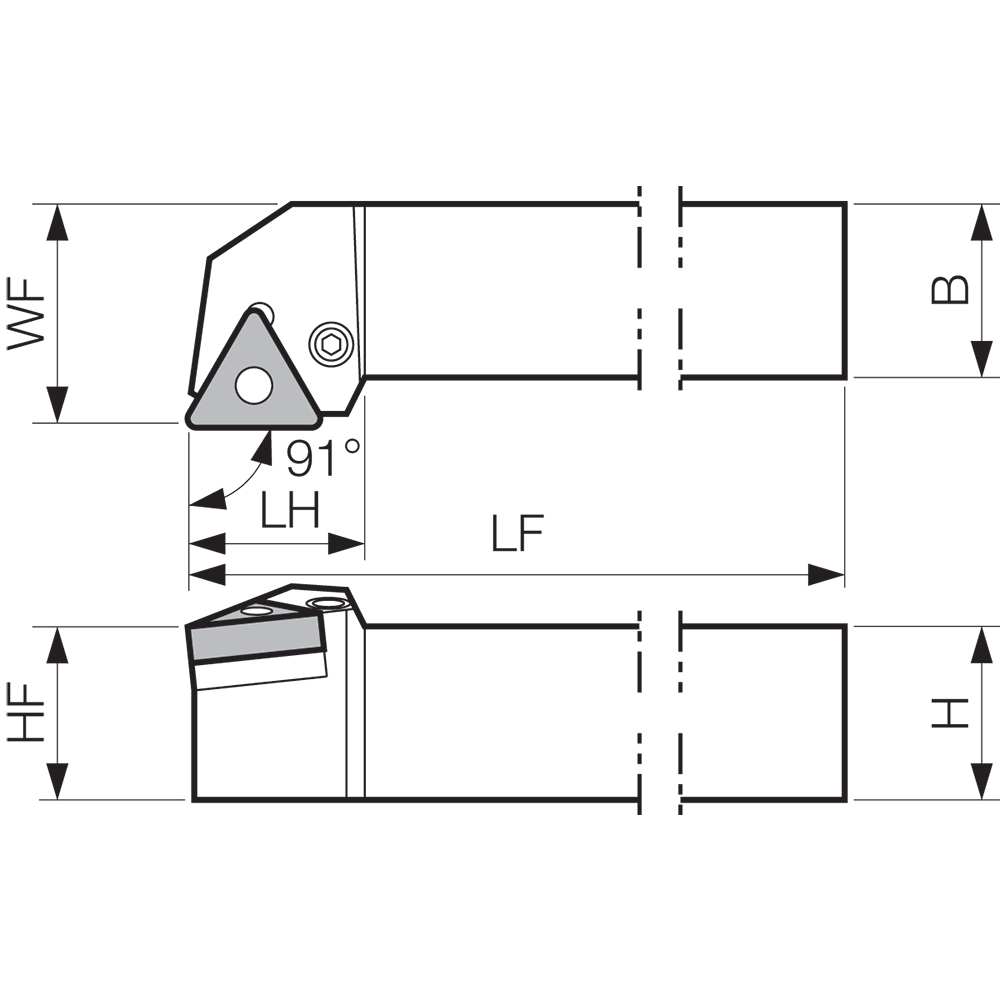

| Shank Height (H) | 3/4″ | Application | External Turning |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 4-1/2″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 0.9598″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 0.3752″ | Clamping System | Lever Lock (Pin Lock) |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.974
