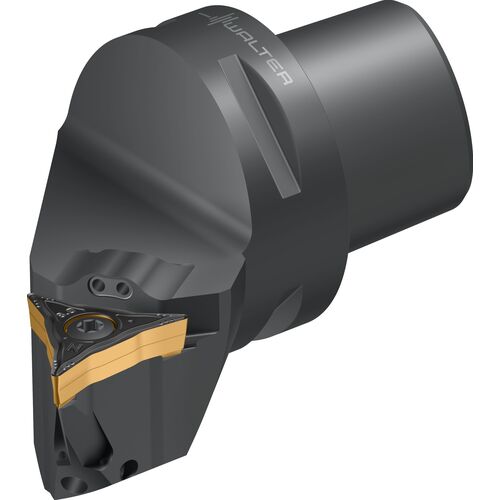

W1011-C4R-WL25-P
Turning Toolholder; 74 mm OAL × 40 mm Shank Dia. ; Right Hand ; Steel
Additional Tariff Surcharge of 8 %
| Protruding Length (LPR) | 74 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Overall Length (OAL) | 74 mm | Usable Length (LU) | 50 mm |
| Functional Length (LF) | 50 mm | Weight of Item (WT) | 0.75 lb |
| Functional Width (WF) | 27 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Clamping System | Screw Clamp |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Turning Tool Holder |
| Minimum Bore Diameter (DMIN) | 200 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Shank Size (SS) | 40 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Connection Code Machine Side (CCMS) | C4 |
| Shank Type | Capto |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.75
