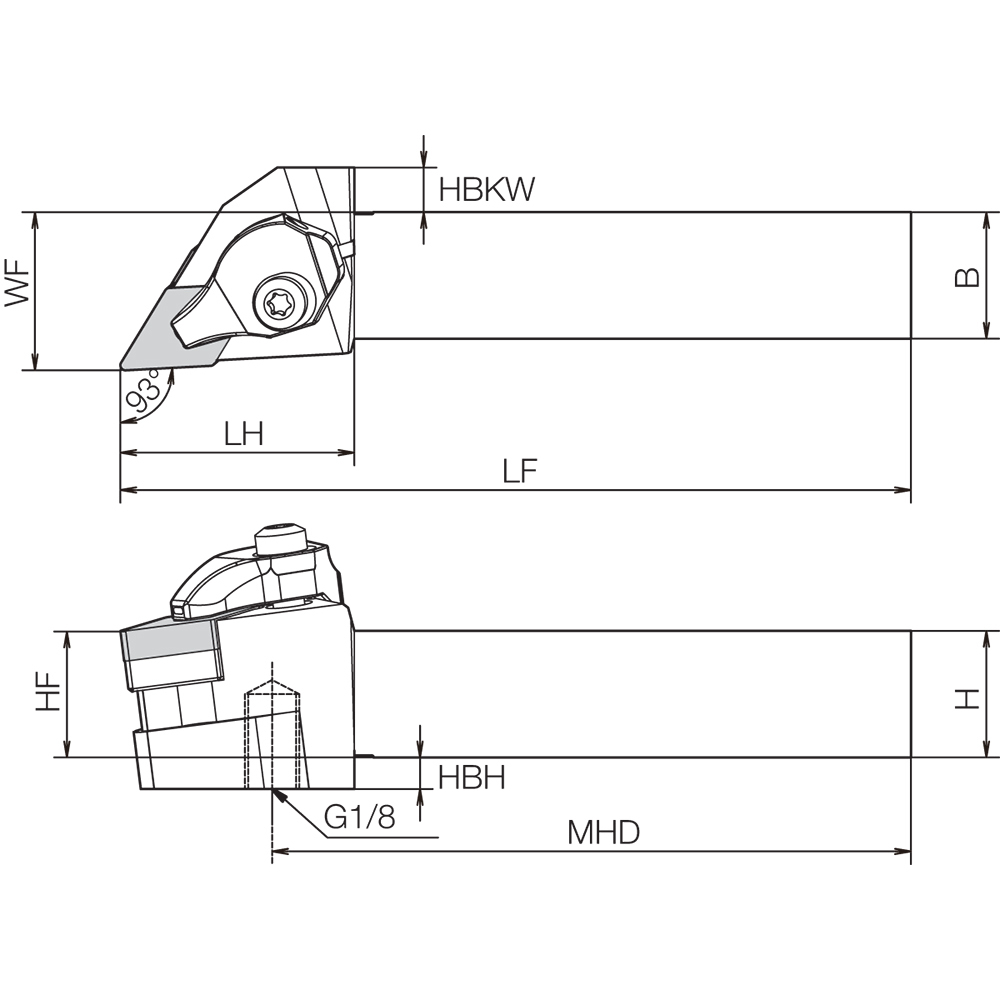

DDJNL 2020K15JCT, Indexable Coolant-Through Turning Toolholder
| Shank Height (H) | 20 mm | Application | Copying | External Turning |
| Shank Width (B) | 20 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 125 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Head Length (LH) | 37 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Clamping System | Double Clamp |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.160
