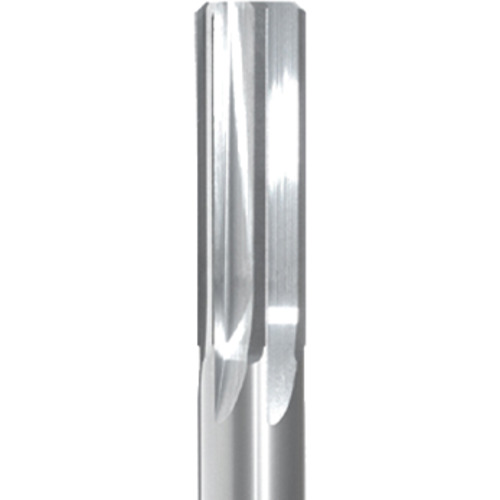

.4017 ST FL RHC REAMER
Chucking Reamer; 0.4017″ Dia. × 0.4017″ Shank Dia. × 3-1/2″ OAL ; 6 FL ; Carbide ; Uncoated ; Series 500
| Cutting Diameter (DC) | 0.4017″ | Coating | Uncoated |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Cutting Edge Material | Carbide |
| Usable Length (LU) | 1-1/4″ | Measurement Type | Inch |
| Cutting Edge Length (L) | 1-1/4″ | Series/List # | 500 |
| Connection Diameter Machine Side (DCONMS) | 0.4017″ | Decimal Equivalent | 0.4017″ |
| Flute Count (NOF) | 6 | End Shape | 45° Chamfered End |
| Overall Length (OAL) | 3-1/2″ | Cutting Diameter Tolerance | +0.0003 / -0.0000 |
| Neck Length (LN) | 7/8″ | Single / Double End | Single End |
| Cutting Direction (HAND) | Right Hand | Length Group | Regular |
| Grade | C-2 Sub-Micron |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.2
