DCKNR164D

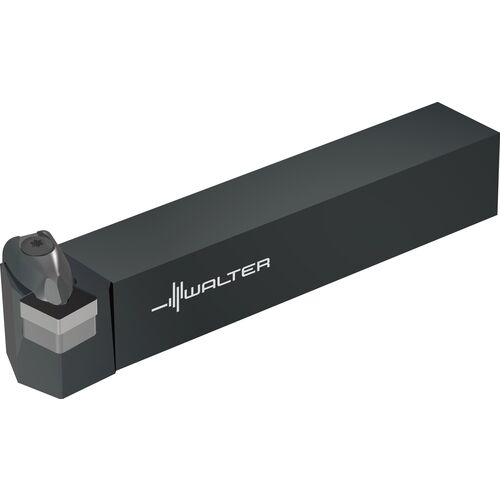

Turning Toolholder; 6″ OAL × 1″ Shank Height × 1″ Shank Width ; Right Hand ; Steel
Additional Tariff Surcharge of 8 %
| Shank Height (H) | 1″ | Shank Type | Square |
| Shank Width (B) | 1″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Protruding Length (LPR) | 6″ | Usable Length (LU) | 6″ |
| Overall Length (OAL) | 6″ | Weight of Item (WT) | 1.817 lb |
| Functional Length (LF) | 6″ | Body Material | Steel |
| Functional Width (WF) | 1-1/4″ | Clamping System | Wedge Lock |
| Inscribed Circle Diameter (IC) | 1/2″ | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Master Insert Identification (MIID) | DCKN | Shank Size (SS) | 1″ |
| Coolant Supply Property (CSP) | External | Connection Code Machine Side (CCMS) | 1″ × 1″ |
Product Features
| Country of Origin | Sweden |
