| Shank Size (SS) | 40 | Measurement Type | Inch |
| Protruding Length (LPR) | 1 | Tool Type | High speed spindles |
| Overall Length (OAL) | 8.295″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.236″ |
| Body Diameter (BD) | 0.63″ | Body Material | Steel |
Product Features

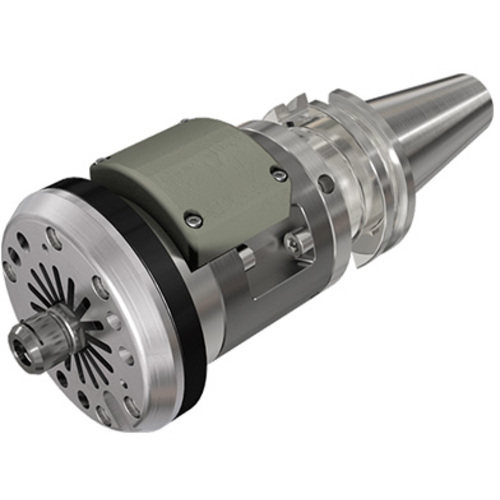

| Family Description | High Pressure Coolant driven HSM spindle with CAT shank, for small diameter cutting tools. Can be used for semi finish and finish machining applications. | Country of Origin | Israel |
| Remarks | Coolant pressure 580-1000 PSI and flow rate 4.2-5.8 GPM RPM range 25,000-45,000 RPM The spindle provides only external strong coolant jet around the tool Battery not supplied |
