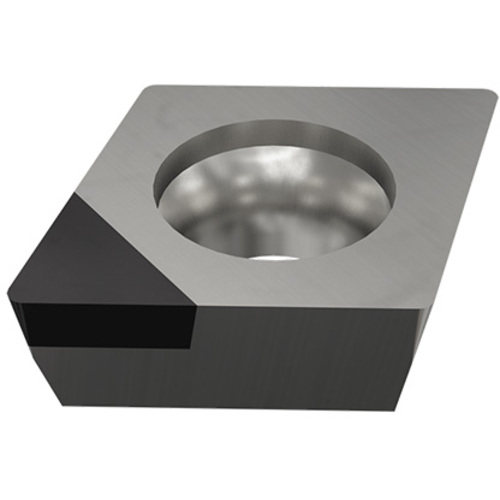

EPGW 4.51.81TF-MT IB05H
| Applicable Material | | Hard Materials | | Fixing Hole Diameter (D1) | 0.075″ |
| Application | | Int. 75° Diamond 100° Approach | | Tool Type | Turn Positive Inserts |
| Insert Style | EPGW | Min D.O.C. | 0.001″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.008″ |
| Insert Size | 4.5 | Min. Turning Feed (ft(min)) | 0.00118 ″/rev |
| Cutting Edge Length (L) | 0.146″ | Max. Turning Feed (ft(max)) | 0.00393 ″/rev |
| Insert Thickness (S) | 0.055″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.141″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Grade | IB05H | Body Material | Carbide |
Product Features
| Family Description | Positive 75° Rhombic Inserts with Single CBN mini tip for hardened steel | Country of Origin | Japan |
| Remarks | For dimensions and tolerances, see more info. |
