| Applicable Material | | Steel | Stainless Steel | | Grade | AH3225 |
| Application | | High Feed Milling | | Maximum Feed per Tooth (fz(max)) | 0.059 in/tooth |

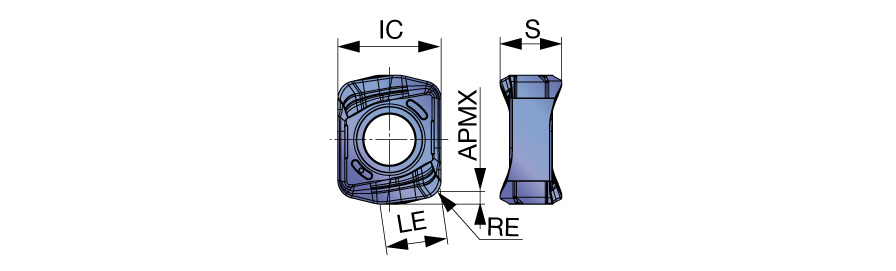

| Corner Radius (RE) | 0.0787″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.059″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.472″ | Minimum Feed per Tooth (fz(min)) | 0.0197 in/tooth |
| Inscribed Circle Diameter (IC) | 0.472″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.276″ | Cutting Edge Effective Length (LE) | 0.282″ |
| Wiper Edge Length (BS) | 393.661″ | Measurement Type | Inch |
| Coating | TiAlSiCrN | Body Material | Carbide |
Product Features
| Family Description | Double sided insert with 4 edges and MJ chipbreaker for general purpose, low approach angle | Country of Origin | Japan |
Shipping Info
Package Weight
0
