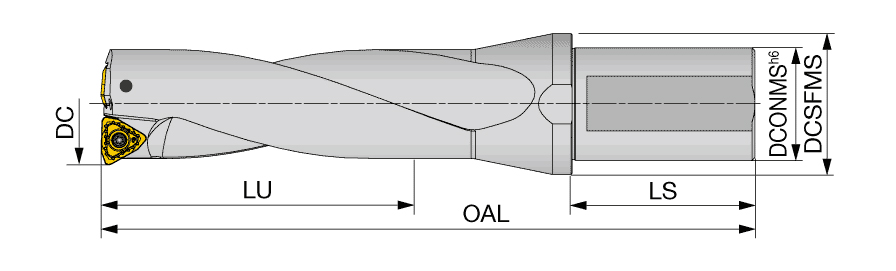

TDSU-0812FS-03SF
Indexable Insert Drill; 0.812″ Dia. × 2.437″ LU × 1″ Shank Dia. × 6.332″ OAL ; Steel
| Cutting Diameter (DC) | 0.812″ | Cutting Diameter Minimum (DCN) | 0.812″ |
| Usable Length (LU) | 2.437″ | Cutting Diameter Maximum (DCX) | 0.812″ |
| Application | | General Drilling | | Flange Diameter (DF) | 1.457″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Point Length (PL) | 0.031″ |
| Tool Type | Indexable Insert Drills | Measurement Type | Inch |
| Shank Length (LS) | 2-3/4″ | Master Insert Identification (MIID) | WWMU05X205R-DJ |
| Functional Length (LF) | 3.582″ | Body Material | Steel |
| Overall Length (OAL) | 6.332″ | Decimal Equivalent | 0.812″ |
Product Features
| Family Description | TungSix-Drill Indexable insert drills, L/D=3, Flat cotter | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
