TDSU-0750FS-04SF

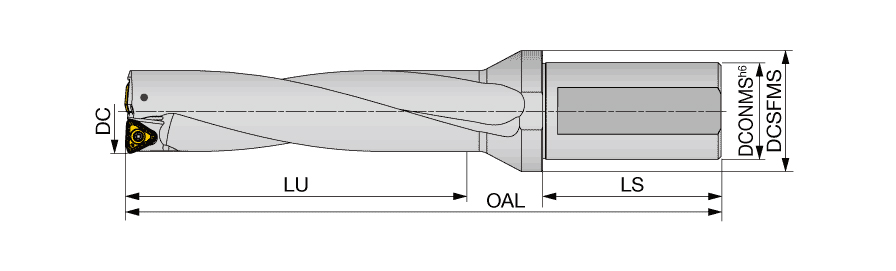

Indexable Insert Drill; 3/4″ Dia. × 3″ LU × 1″ Shank Dia. × 6.901″ OAL ; Steel
| Cutting Diameter (DC) | 3/4″ | Cutting Diameter Minimum (DCN) | 3/4″ |
| Usable Length (LU) | 3″ | Cutting Diameter Maximum (DCX) | 3/4″ |
| Application | | General Drilling | | Flange Diameter (DF) | 1.457″ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | WWMU05X205R-DJ |
| Shank Length (LS) | 0″ | Body Material | Steel |
| Functional Length (LF) | 4.151″ | Decimal Equivalent | 0.75″ |
| Overall Length (OAL) | 6.901″ |
Product Features
| Family Description | TungSix-Drill Indexable insert drills, L/D=4, Flat cotter | Country of Origin | JAPAN |
