Item # 114095B

Brand: Emuge-Franken

MFG #: SEG1080.6537

Legacy Part #: ER4525143

TradeName: EvoGrip

Quantity Available

Type

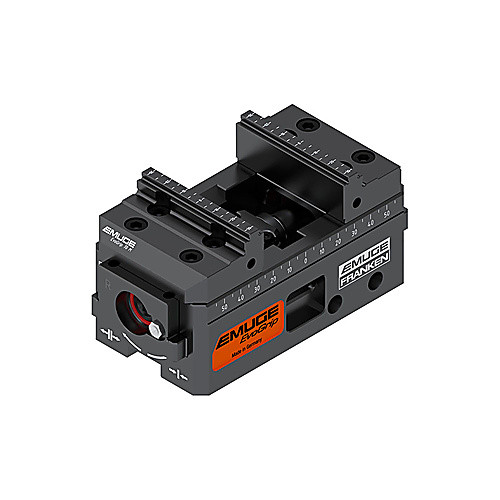

Set Centering Vise

Height

48 mm

Length

130 mm

Material

Steel

Width

70 mm

Set Includes

Base unit, Spindle mount, Lead screw, Spindle cover, Base jaws, Small components (hardware set), Mounting screws for machine table or spacer setup, reversible jaw (left), reversible jaw (right), Jaw mounting screws

Number of Pieces

Model No

‎70-130 M

Jaw Width

70 mm

Product Features

Remarks

‎

Engineered with 70-130 evogrip vice including a set of stepped top jaws and jaw hardware, this tool, featuring 25kn clamping force, centering vise base unit 70-130 m with reversible jaws featuring flat clamping faces and an offset step designed to hold parts securely without leaving clamping marks, includes stepped-style centering vise set 70-130 m with: base unit, spindle mount, lead screw, spindle cover, base jaws, small parts, and mounting screws (for machine table or spacer setup).also includes a set of stepped reversible jaws (2 jaws with screws)., reversible jaws feature a dual-sided contour, allowing for both internal and external clamping based on the part. each jaw includes a male driver on the bottom face for secure positioning. flexible placement is enabled by grooves in the base jaws of the centering vise. use the inner groove for zero-point clamping or the outer groove to expand the clamping range. evogrip 70-130 m models include two grooves per base jaw for added flexibility., base jaws include grooves for quick, flexible mounting of reversible jaws. use the inner groove to clamp at center (zero point) or the outer groove to expand your clamping range. reversible jaws are double-sided, allowing for both internal and external clamping based on your part setup., flexible setup options support single-part, multi-part, and single-jaw clamping ideal for large components., advantages: - no clamping marks on the workpiece - flexibility, delivering reliable performance and precise operation.

Country of Origin

Germany

Shipping Info

Package Weight

6.17
