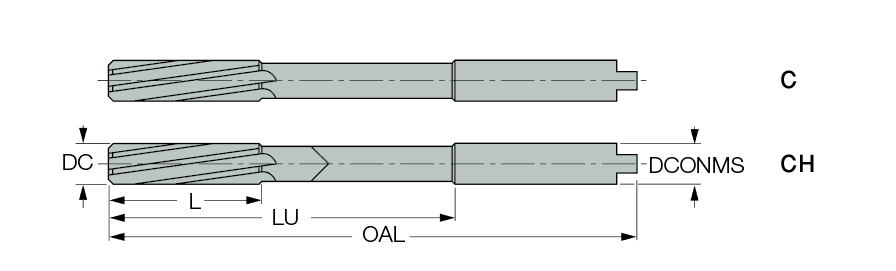

RM-SHR-1600-H7N-CS-CH IC07
| Cutting Diameter (DC) | 16 mm | Grade | IC07 |
| Applicable Material | Stainless Steel|Non Ferrous Metals|Hi-Temp Alloys | Coating | Uncoated |
| Usable Length (LU) | 120 mm | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12.5 mm | Shank Type | Round |
| Flute Count (NOF) | 8 | Flute Type | Straight |
| Overall Length (OAL) | 170 mm | Length Chip Flute (LCF) | 2″ |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 0 Degrees | Decimal Equivalent | .5640 |
Product Features
| Family Description | DIN 8093 solid carbide reamers with spiral flute and a cylindrical shank, for through holes. - C - solid carbide, CH - brazed solid carbide head with DIN 1809 tang. | Country of Origin | IL |
| Remarks | -C: Solid carbide -CH: Brazed solid carbide head with DIN 1809 tang Hole tolerance: H7 manufacturing tolerance according to DIN 1420 Reamers above 5 mm diameter have the tang back-end design Available grades: IC07 (uncoated), optional: IC907 (TiAlN PVD coated) Special diameters are available on request |
Shipping Info
Package Weight
.5230
