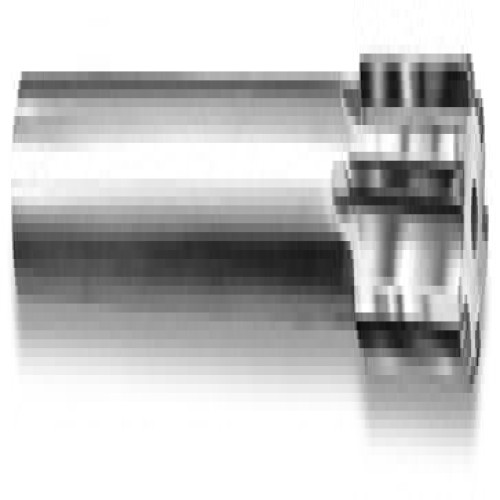

1-1/8 Dia-HSS-Carbide Tipped Chucking Reamer
Chucking Reamer; 1-1/8″ Dia. × 11″ OAL × 2-7/8″ LCF ; 8 FL ; Carbide
| Cutting Diameter (DC) | 1-1/8″ | Shank Type | Round |
| Usable Length (LU) | 2-7/8″ | Flute Type | Full Length |
| Flute Count (NOF) | 8 | Length Chip Flute (LCF) | 2-7/8″ |
| Overall Length (OAL) | 11″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Decimal Equivalent | 1.1250 |
| Cutting Edge Material | Carbide |
Product Features
| Remarks | •Carbide Tipped Chucking Reamers •Carbide tips brazed to one-piece hardened tool steel bodies. Cutting diameter tolerance +.0003 .0000 . For general reaming of steel, cast iron, non-ferrous metals, plastics and non-metals. Reamers for steel have a special cutting geometry; positive radial rake (behind center) narrow circular lands; minimum back taper & longer flutes for straighter holes. | Country of Origin | USA |
Shipping Info
Package Length
11.50000
Package Width
1.70000
Package Height
1.70000
Package Weight
2.2
