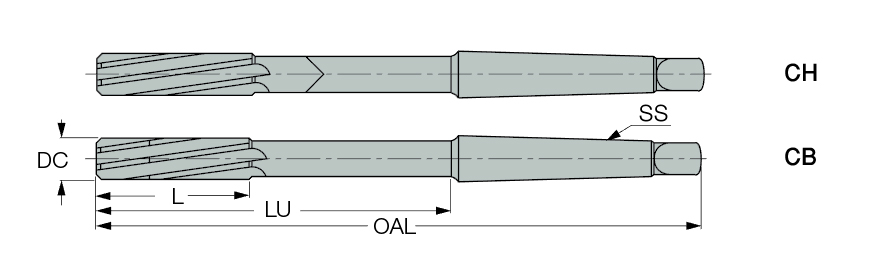

RM-SHR-2000-H7N-MT2-CB IC07
Chucking Reamer; 20 mm Dia. × 228 mm OAL ; 6 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 20 mm | Coating | Uncoated |
| Applicable Material | | Stainless Steel | Non Ferrous Metals | Hi Temp Alloys | | Cutting Edge Material | Carbide |
| Application | | Stacked Plates | Through & Axial Groove | Through & Perpendicular Holes | Through & Radial Groove | Through Hole | | Shank Type | Round |
| Usable Length (LU) | 148 mm | Flute Type | Straight |
| Cutting Edge Length (L) | 60 mm | Length Chip Flute (LCF) | 2″ |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Overall Length (OAL) | 228 mm | Tool Type | Solid Carbide Reamers |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Flute Helix Angle (FHA) | 0 Degrees | Decimal Equivalent | .5640 |
| Grade | IC07 |
Product Features
| Family Description | DIN 8093 solid carbide reamers with spiral flute and a Morse taper shank for through holes. CH - brazed solid carbide head, CB - brazed solid carbide tips. | Country of Origin | Germany |
| Remarks | Requires a price and delivery time quotation Available only upon request -CH: Brazed solid carbide head -CB: Brazed solid carbide tips Hole tolerance: H7 manufacturing tolerance according to DIN 1420 Available grades: IC07 (uncoated), optional: IC907 (TiAlN PVD coated) |
Shipping Info
Package Weight
0.816
