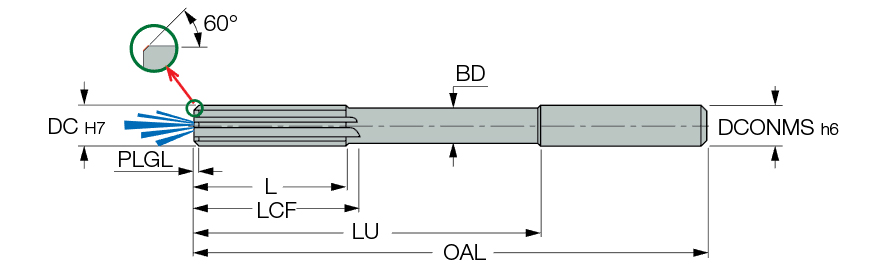

| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Application | | Blind & Perpendicular Hole | Blind & Radial Groove | Blind Hole | | Flute Type | Straight |
| Usable Length (LU) | 61 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Length (L) | 18 mm | Length Chip Flute (LCF) | 23 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Measurement Type | Metric |
| Flute Count (NOF) | 6 | Point Length (PL) | 0.5 mm |
| Overall Length (OAL) | 101 mm | Tool Type | Solid Carbide Reamers |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Flute Helix Angle (FHA) | 0 Degrees | Decimal Equivalent | .5640 |
| Grade | EVO | Body Diameter (BD) | 8 mm |
| Coating | evotec for reamers UOP |
Product Features

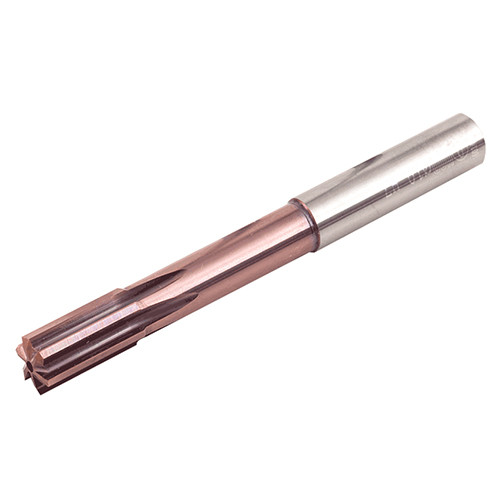

| Family Description | MTR UOP Straight flute PVD coated solid carbide reamers, with cylindrical shank and coolant holes for high speed reaming. Unequal pitch for chatter dampening. | Country of Origin | Italy |
| Remarks | EVO is a hard submicron IC07 carbide substrate with an ultra-thin silicon based PVD coating, obtained by High Density Plasma (HDP) technology. Hole tolerance: H7 manufacturing tolerance according to DIN 1420 |
Shipping Info
Package Weight
0.214
