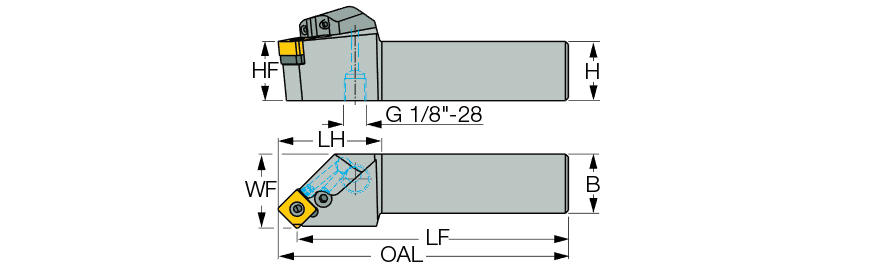

| Shank Height (H) | 3/4″ | Application | | Ext. 90°Square 45°Face&Turn Ap | |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | -5.5 Degrees |
| Overall Length (OAL) | 4.791″ | Rake Angle Radial (GAMF) | -5.5 Degrees |
| Functional Length (LF) | 4-1/2″ | Body Material | Steel |
| Head Length (LH) | 1.378″ | Cutting Position | External |

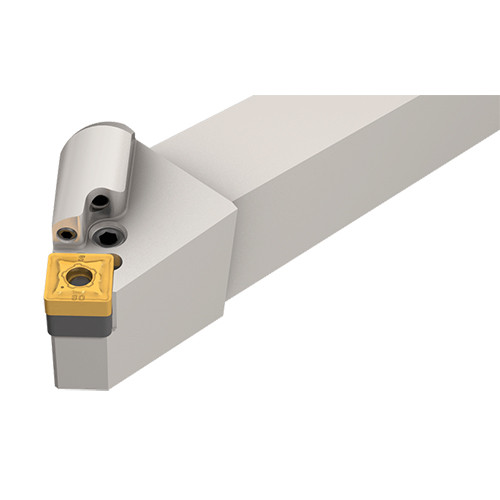

| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Style | SCLCL08-3A |
| Master Insert Identification (MIID) | SNMG 3.. |
Product Features
| Family Description | Lever lock 45° lead angle longitudinal and facing tools, for negative square inserts, with channels for high-pressure coolant. | Country of Origin | Israel |
