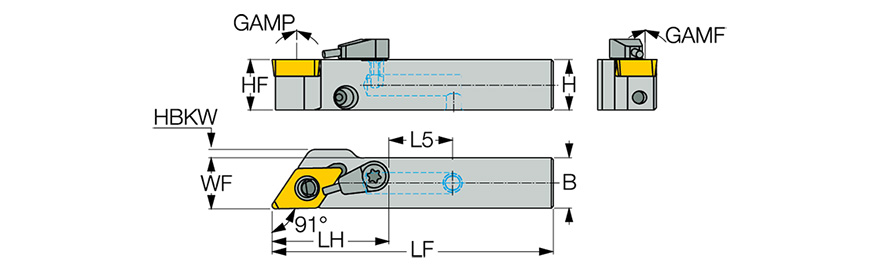

| Shank Height (H) | 16 mm | Application | | Ext. 55° Diamond 91° Approach | |
| Shank Width (B) | 16 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 76 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 28 mm | Body Material | Steel |
| Functional Width (WF) | 16.2 mm | Cutting Position | External |
| Inscribed Circle Diameter (IC) | 9.52 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | DC..11T3 | Style | SCLCL08-3A |
Product Features

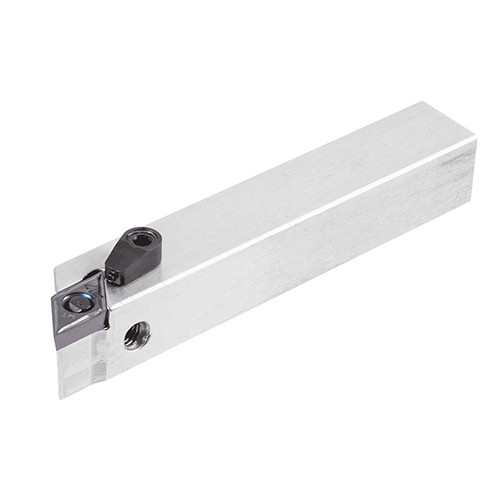

| Family Description | Lever lock tools with bottom fed channels for high-pressure coolant carrying 55° positive rhombic inserts. The tools were designed for Swiss automatic machines. | Country of Origin | Israel |
Shipping Info
Package Weight
0.373
