HCM D1.25-A-L8.0-C1.25

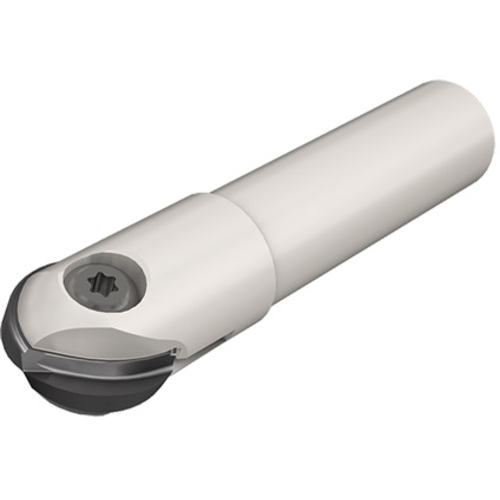

Indexable End Mill; 1-1/4″ Dia. × 0.85″ LOC × 1-1/4″ Shank Dia. × 8″ OAL × 0″ LU ; 0 FL ; Round Shank ; 0 Degrees
| Cutting Diameter (DC/DCX) | 1-1/4″ | Usable Length (LU) | 0″ |
| Cutting Diameter (DC) | 0″ | Flute Count (NOF) | 0 |
| Cutting Item Count (CICT) | 0 | Torque (TQ) | 106 lbfxin |
| Depth of Cut Maximum (APMX) | 0.85″ | Body Diameter (BD) | 1.063″ |
| Overall Length (OAL) | 8″ | Corner Radius (RE) | 5/8″ |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Tool Cutting Edge Angle (KAPR) | 0 Degrees |
| Application | | Countersinking | Drill Mill | Profiling | Slanted Shoulder & Chamfer | | Front Type | A |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | HBR D1.25 | Measurement Type | Inch |
| Head Length (LH) | 4″ | Body Material | Steel |
| Tool Type | Ball nose endmills | Cutting Diameter Maximum (DCX) | 1-1/4″ |
Product Features
| Family Description | Ball nose multifunction endmills D=1.250″. Each tool can carry various milling insert geometries. | Country of Origin | Israel |
| Remarks | The dimensions are for HBR inserts For adaptation click on More Info |
Shipping Info
Package Weight
1136
