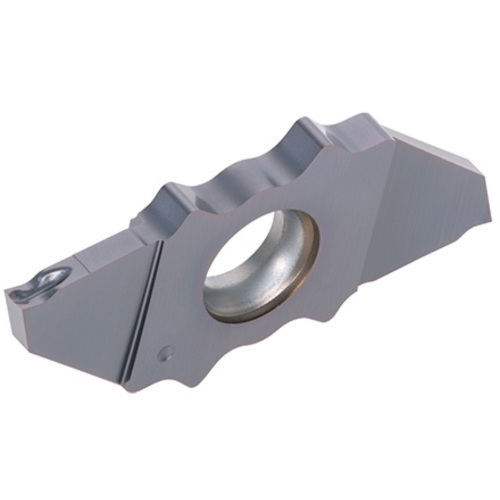

JXPG20L20F-15H SH7025
Parting Off Insert; 0.079″ CW × 1.299″ Length × 0.002″ Corner Radius ; Carbide ; TiAlN+TiCN ; SH7025

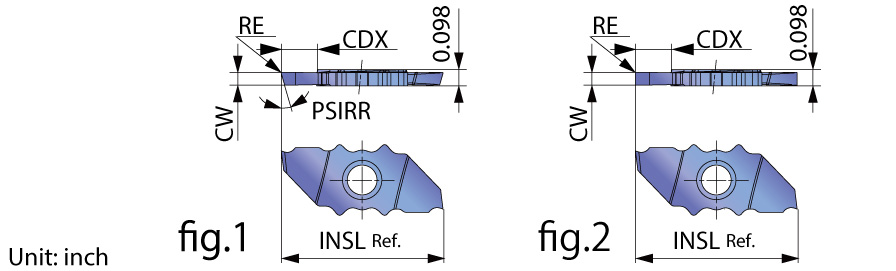

| Cutting Width (CW) | 0.079″ | Application | | Inserts | |
| Corner Radius (RE) | 0.002″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 1.299″ | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 0.787″ |
| Coating | TiAlN+TiCN | Measurement Type | Inch |
| Grade | SH7025 | Body Material | Carbide |
Product Features
| Family Description | Double-ended insert for parting-off, sharp cutting edge. | Country of Origin | Japan |
| Remarks | Max grooving depth varies depending on workpiece diameters. For max grooving depth, click on "Product report". |
