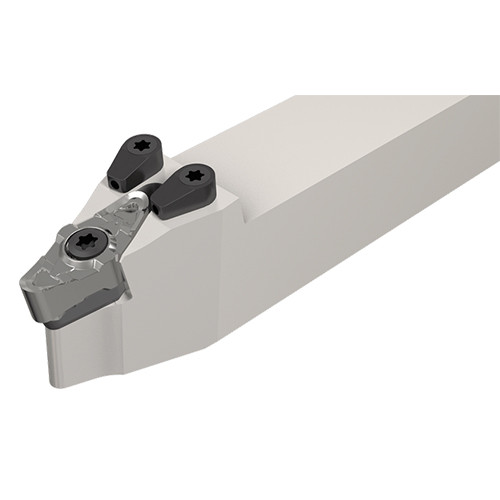

SVVNN 2525M-22-AL-JHP

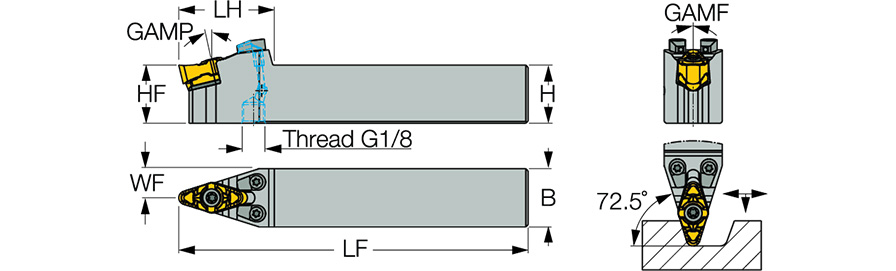

| Shank Height (H) | 25 mm | Rake Angle Axial (GAMP) | -13.5 Degrees |
| Shank Width (B) | 25 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Length (LF) | 150 mm | Body Material | Steel |
| Head Length (LH) | 41 mm | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 12.5 mm | Measurement Type | Metric |
| Master Insert Identification (MIID) | VNGU 220630-R3N | Style | SCLCL08-3A |
| Application | | Ext. 35° Diamond 72.5° Approac | |
Product Features
| Family Description | Screw lock tools with channels for high-pressure coolant carrying 35° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.689
