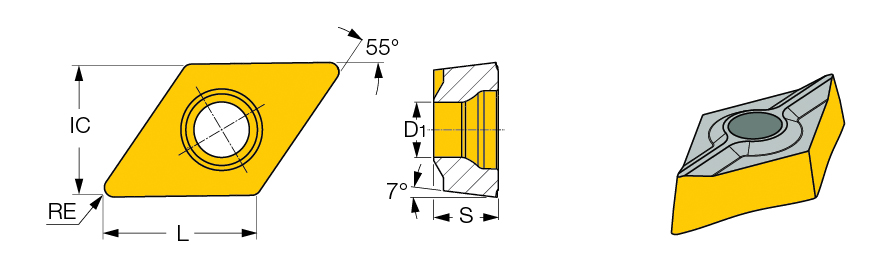

DCMT 13T504-F3P-SL IC807
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.177″ |
| Application | | Ext. 55° Diamond 107.5° Appr. | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 91° Approach | Ext. 55° Diamond 93° Approach | Int. 55° Diamond 93 95° Approac | Y Axis for Swiss Type Machines | Y Axis Variable Approach angle | | Tool Type | Turn Positive Inserts |
| Insert Style | DCMT | Min D.O.C. | 0.02″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Size | 13T | Min. Turning Feed (ft(min)) | 0.00196 ″/rev |
| Cutting Edge Length (L) | 0.528″ | Max. Turning Feed (ft(max)) | 0.00984 ″/rev |
| Insert Thickness (S) | 0.201″ | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 0.433″ | Chip Breaker Type | F3P |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | IC807 |
Product Features

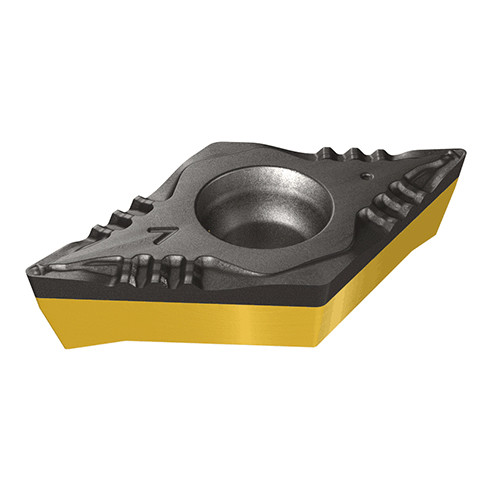

| Family Description | 55° rhombic positive flank inserts for semi-finishing and finishing of steel. A ridge at the insert bottom which fits onto a long groove on the tool's seat ensures high edge location precision. | Country of Origin | Israel |
Shipping Info
Package Weight
9
