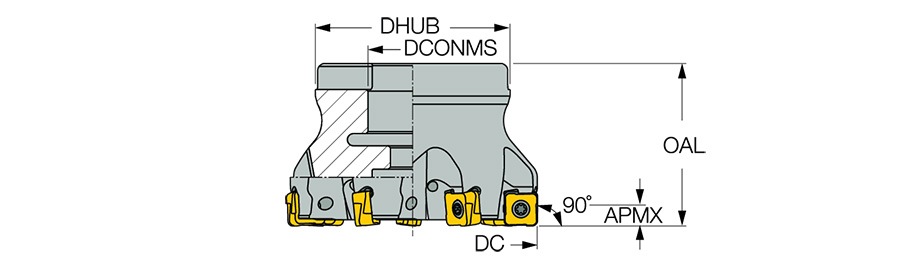

S890 FSZ D2.0-05-0.75-R10
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1-1/2″ OAL × 0.28″ LOC ; 5 Inserts ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Master Insert Identification (MIID) | S890 SZMU 1005... |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.28″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | | Shouldering | Slotting | |
| Overall Length (OAL) | 1-1/2″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.85″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Arbor Style | A | Tool Type | 90° Facemills |
Product Features
| Family Description | Face Mills Carrying Double-Sided Square Inserts with 8 Cutting Edges | Country of Origin | Israel |

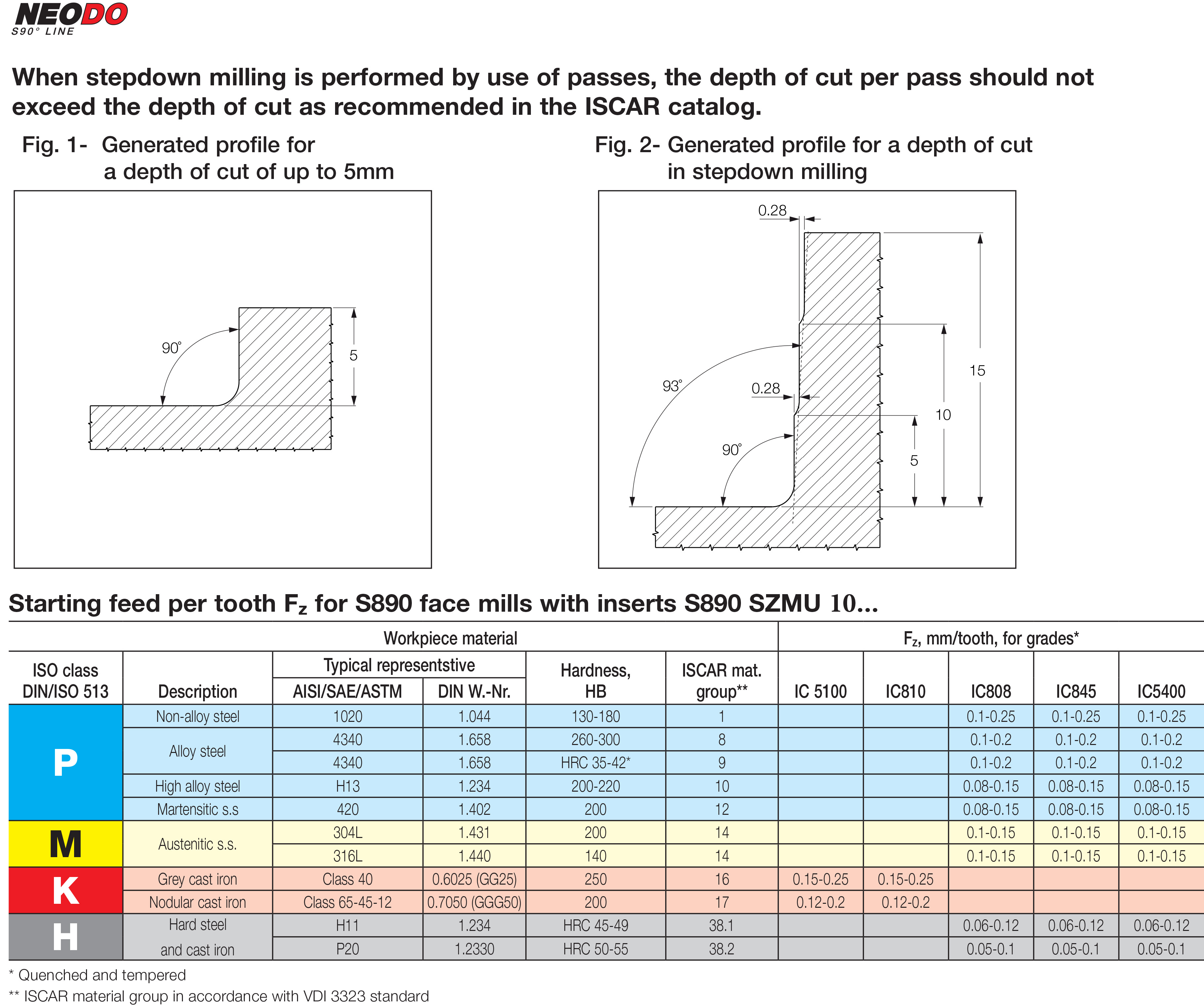

| Remarks | For machining recommendations, click on More Info |
Shipping Info
Package Weight
483
