11IRA55 DS2015

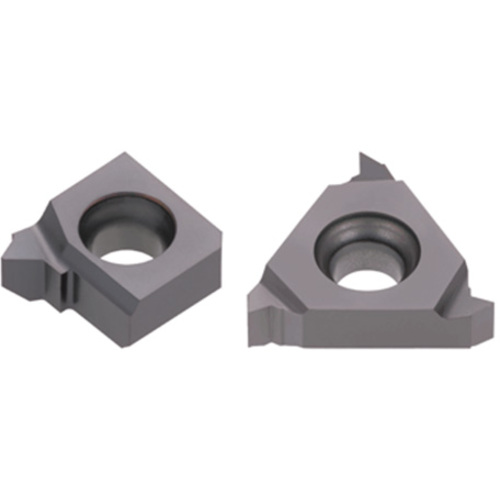

Laydown Threading Insert ; 1/4″ IC ; Carbide ; DS2015 ; Diamond Like Carbon

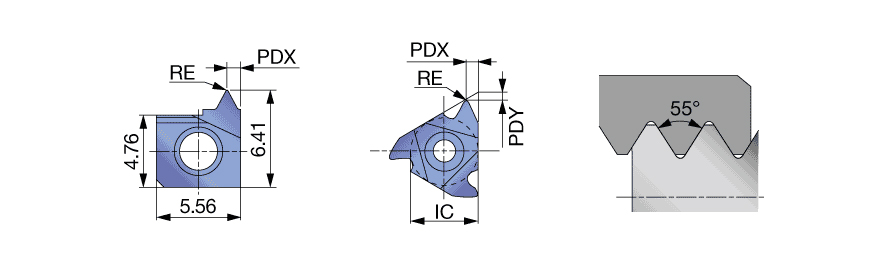

| Inscribed Circle Diameter (IC) | 1/4″ | Threads per Inch Minimum (TPIN) | 16 |
| Corner Radius (RE) | 0.0027″ | Threads per Inch Maximum (TPIX) | 48 |
| Grade | DS2015 | Thread Pitch Minimum (TPN) | 0.5 mm |
| Coating | Diamond Like Carbon | Thread Pitch Maximum (TPX) | 1.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Threading Regular Inserts |
| Application | | Inserts | | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
| Cutting Item Count (CICT) | 3 | Profile Distance EY (PDY) | 0.028″ |
Product Features
| Family Description | Internal 55deg, Partial profile | Country of Origin | Japan |
Shipping Info
Package Weight
0
