| Application | | Multi Functional tools | Shoulder Milling | | Cutting Edge Material | Carbide |

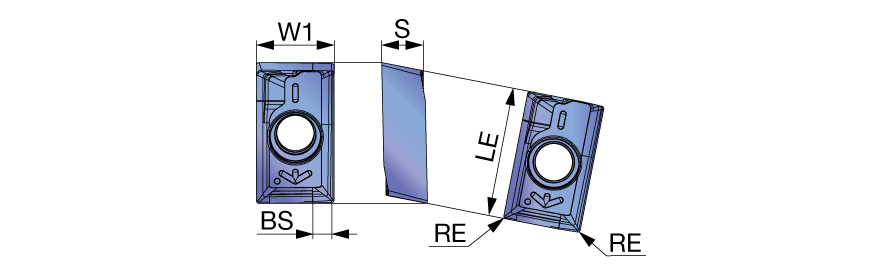

| Corner Radius (RE) | 0.0157″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.433″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.28″ | Cutting Edge Effective Length (LE) | 0.48″ |
| Insert Thickness (S) | 0.165″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.047″ | Body Material | Carbide |
| Grade | DS2005 |

Product Features

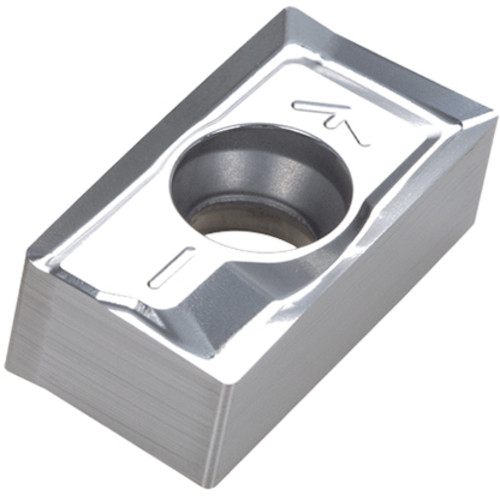

| Family Description | Double-sided insert with four total cutting edges and AM chipbreaker for non-ferrous metal machining | Country of Origin | Japan |
