| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH8015 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0197 in/tooth |

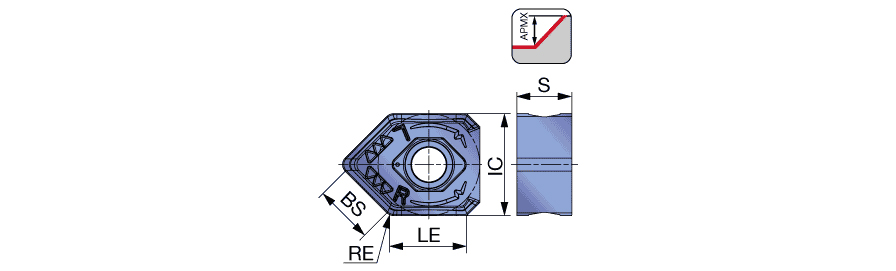

| Corner Radius (RE) | 0.0472″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Inscribed Circle Diameter (IC) | 0.512″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.276″ | Cutting Edge Effective Length (LE) | 0.378″ |
| Wiper Edge Length (BS) | 0.295″ | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |

Product Features

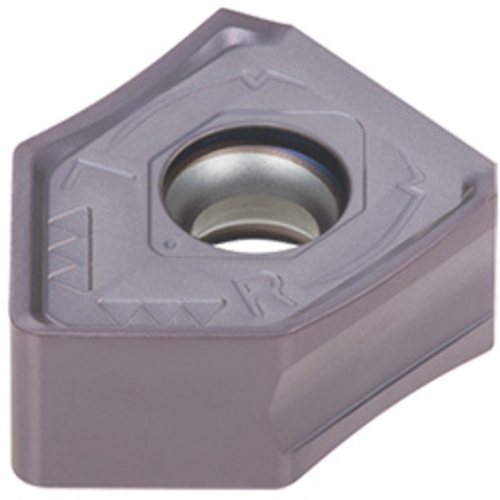

| Family Description | Double sided wiper insert with 2 cutting edges in using with SNGU13 insert | Country of Origin | Japan |
